Printing Speed

0~60 m/min(300DPI); 0~30 m/min(600DPI)

Production Line Speed

Production line speed can be set, auto-measured or confirmed by external synchronizer

Printing Possibilities

Date Format: 2 date modes (production date, limited date), formats adjustable;

Counters: Serial number, Box number, Pallet number can be flexible set by counters;

User-defined: Logos or other user self-defined characters.

Barcodes

PCA, UPCE, EAN13, EAN8, INT25, CODE39, CODE128, EAN128, PDF417, DATAMATRIX, QR

Multi-

Management

Operator, technician, administrator 3-level management passwords can be set

Database

PC software supports MS Excel, MS Access, SQL2000, SQL2005, SQL2008 and other database formats

Data Source

Standard RS-232, Ethernet interface, simplify the integration for customers

Interface

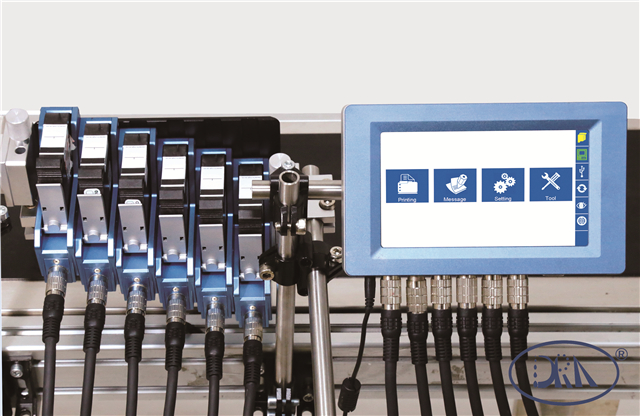

7inch 800*480 resolution color LCD touch screen;

New touch operation interface, easy to learn and easy to use;

Printer can work separately out of the PC.

Port

USB2.0: Support U-Disk;

Ethernet: 100Mb/s, synchronized control of multiple devices via PC;

DB15: Direct access to external electric eye, synchronizer and three-color warning lights.

Ink Management

Automatically recognize the ink types, and identify the optimum printing parameters;

Automatic measuring system for the usage of the ink.

Installation

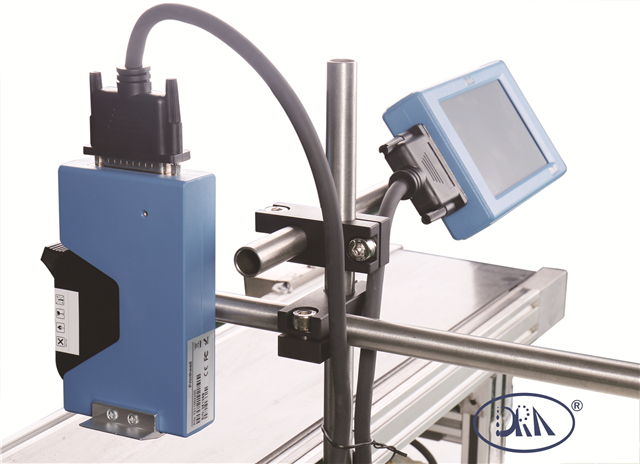

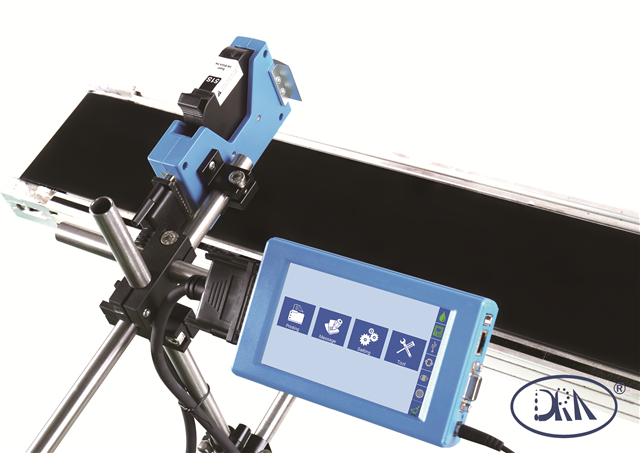

Standard lateral jet bracket, vertical jet bracket and anti-collision bracket can be freely combined and installed.

Input Power

AC 90V-240V/50-60Hz, 90W (Dedicated AC adaptor)

Environment

Operation Environment: -10℃~+45℃; 10%~85%RH

Storage Environment: -25℃~+55℃; 10%~90%RH
