Steel Pipe Industry
詳細說明

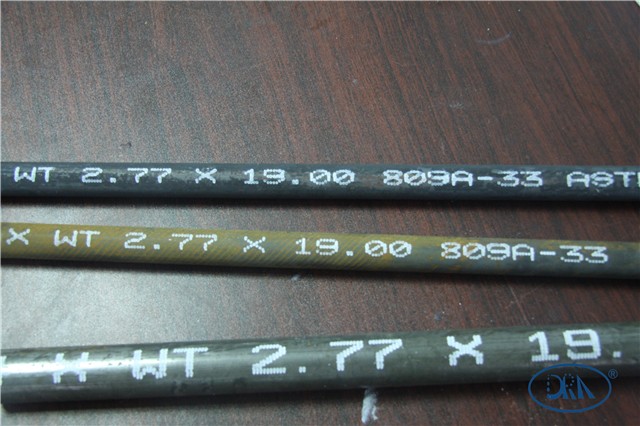

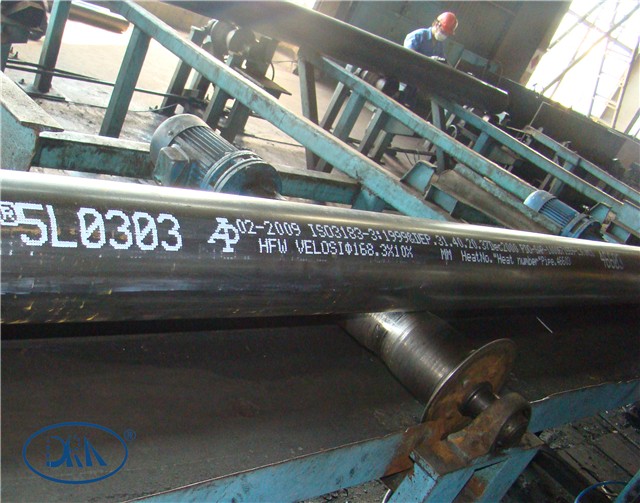

The ink jet printer with dark ink is used in the steel industry.
DOD printing technology saves great cost for you（DROP ON DEMAND).
High industrial protection rating, printer remains reliable, efficient work in harsh ambient conditions such as dust, humidity, high temperature.
Wide range of inks developed for all industrial printing requirements, e.g. white, black, yellow, red, etc.
Electromagnetic valve life at least 5-10 years.
The two heads are available:7dots,16dots.
Single or multi-head(s) is available.
Dialog box, drop-down menu.
Directly connected with common industrial equipment , such as Computer, PLC etc.
The use of automatic ink mixing function makes ink not easy to precipitate, layered, ensures good jet printing quality.
With PLC auto-cleaning system, the print head is not easy to block.
Technical parameter: | |
Character height | 7dots: 8-30mm 16dots: 12-70mm |
Printing matrix | 5x5；7x5；10x10；16x10 |
Printing speed | 7x5: 240m/min 16x10: 135m/min |
Printing possibilities | Character orientation forwards, backwards, upside down Character spacing width and height adjustable Incrementing/decreasing product counters up to 9 digits (count-up counter 001,002,003 or count-down counter 999,998,997) Automatic date and time printing User self-defined logos |
Serial interface | RS232/422/485(optional) |
Operating environment | Temperature: 0℃-50℃ Air humidity: 0-90% |
Ink types | Standard white ink, Super bright white ink Anti-rust preventive oil ink, High temperature ink Quick-drying ink, Slow drying ink |
Dimension | 370mmx450mmx920mm |
Keyboard | 340mmx400mm |
