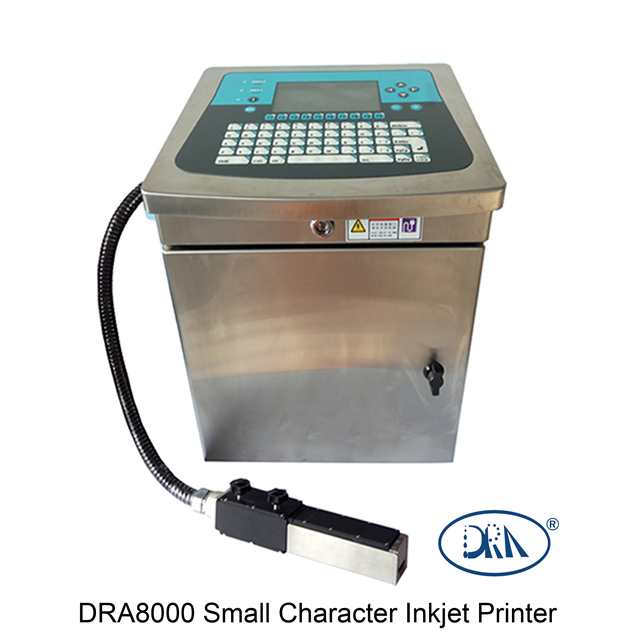

DRA8000 Small Character Inkjet Printer
詳細說明
Integrated storage of printing parameters and messages, convenient to select, save time and improve working efficiency.
Could edit via PC. Messages, images and fonts could be imported & exported via USB.
Flexible user defined font, print font and print mode can be customized according to requirements to improve the function of anti-counterfeiting and anti-channel conflict.

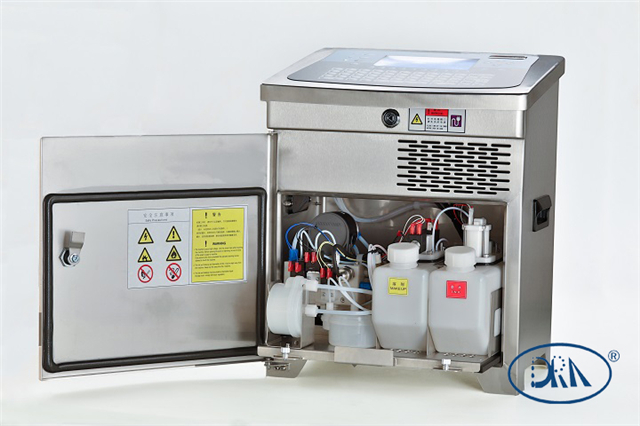

Simple and smart drawer ink circuit guarantees the stability of ink circuit and greatly improves the convenience of ink circuit maintenance.
The embedding technology of modularization print algorithm changes the printing speed and printing lines. It automatically switches the printing algorithm to produce the best printing effect.
The ink circuit system solenoids could be on & off via operating the menu manually. Easy to tell the printers fault and avoid the unnecessary maintenance costs.
Ink and solvent adding system, making them up at any time when they are not enough, not necessary to replace the tanks, it saves costs a lot.
Technical Parameter
Type | DRA8000 Small Character Inkjet Printer |
Character Height | 5-32 dot matrix |
Printing Possibilities | Character orientation forwards, backwards, upside down Character spacing width and height adjustable Date, Time, Validity, Shift, Batch number, Logo, Chinese text, Numbers, Alphabet and etc. |
Input Power | 220V±10%，50/60Hz |
Shape Size | 330*260*400mm |
Weight | 28kg |
Editing Function | Arbitrarily mix, rotate, combine, choose among multiple font, interval bold, interval widened within the range 24 dot matrix |
Graphic Editing | Directly edit trademark pattern within the range 24 dot matrix |
Length Counter | Measure length and print in arbitrary units |
Operating Humidity | 10%-90% |
Protection Rate | Industrial protection rate |
Optional Accessories | Conveyor Belt, paging machine, warning lights, computer and related accessories, access control(PC terminal) |
Printable Lines | 1-3 lines |
Printing Speed | 3.8m/s |
Ink Type | Quick-drying ink |
Print Head Catheter | Standard 2.0m, can be customized |
Message Limit | 1500 dot matrix |
Message Storage | Can store 1500 printing message， 800 graphic message |
Ink Consumption | 500ml ink can print 40 million 7 * 5 dot matrix characters |
Trigger Mode | Automatic, photoelectric, encoder (synchronizer, Length Counter) |
