DRA 3000 Large character ink jet printer

詳細說明

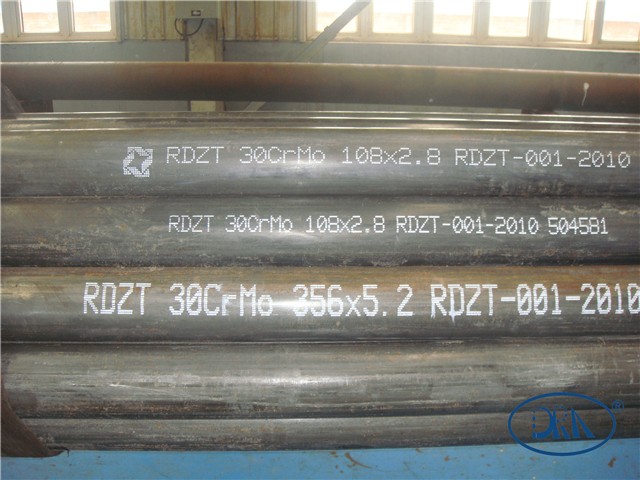

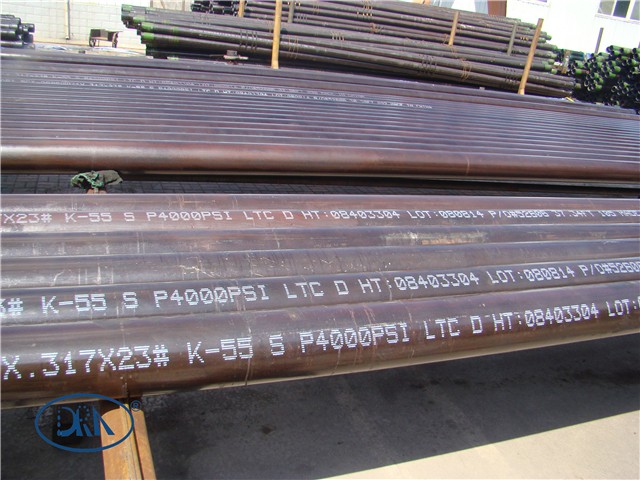

The ink jet printer with dark ink is used in the steel industry.

DOD printing technology saves great cost for you（DROP ON DEMAND).

High industrial protection rating, DRA-3000 remains reliable, efficient work in harsh ambient conditions such as dust, humidity, high temperature.

Wide range of inks developed for all industrial printing requirements, e.g. white, black, blue, red, etc.

Electromagnetic valve life of at least 5-10 years.

There three heads are available: 7dots, 16dots, 48dots.

Single or multi-head(s) is available.

Dialog box, drop-down menu.

Directly connected with common industrial equipment ,such as Computer, PLC etc.

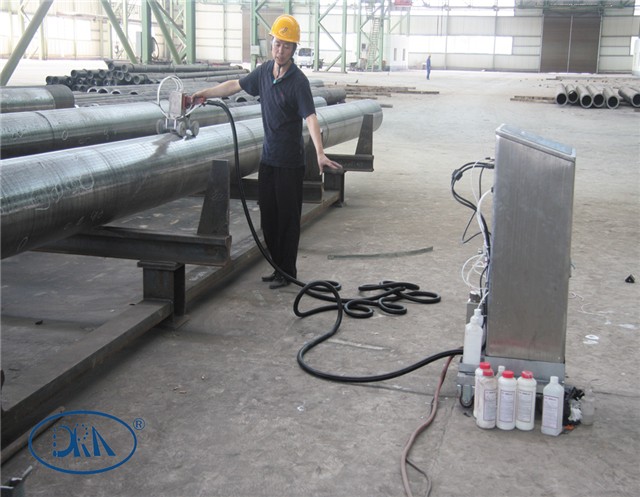

When the steel pipe is stationary, it is possible to use hand-held jet printer.

Technical parameter:
Character height	10-60(adjustable)
Printing matrix	5x5；7x5；10x10；16x10
Printing speed	7x5: 240m/min 16x10: 135m/min
Printing possibilities	Character orientation forwards, backwards, upside down Character spacing width and height adjustable Incrementing/decreasing product counters up to 9 digits (count-up counter 001,002,003 or count-down counter 999,998,997) Automatic date and time printing User self-defined logos
Serial interface	RS232/422/485(optional)
Operating environment	Temperature: 0℃-50℃ Air humidity: 0-90%
Ink types	Standard white ink, Super bright white ink Anti-rust preventive oil ink, High temperature ink Quick-drying ink, Slow drying ink
Dimension	370mmx450mmx920mm
Keyboard	340mmx400mm
